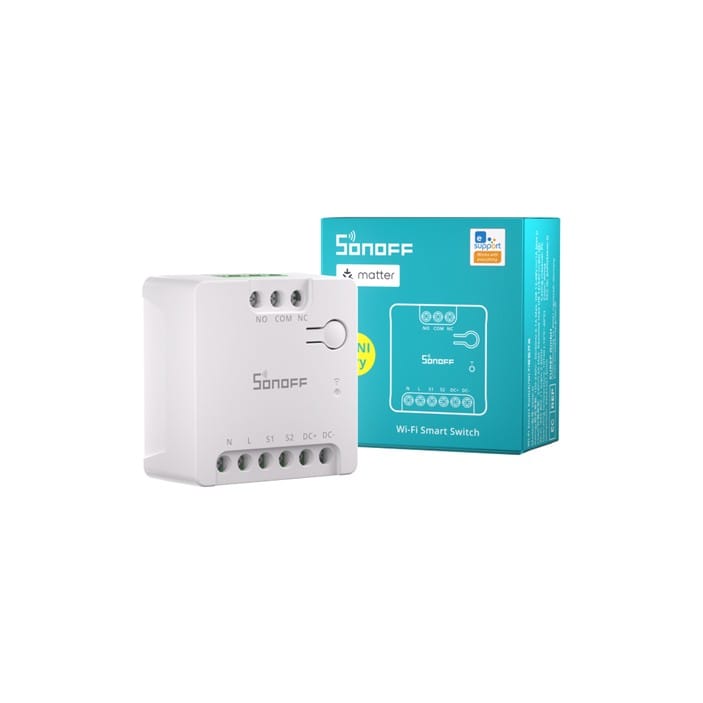

Sonoff Gate Controller (MINI-D)

Description

The Sonoff Mini D

Sonoff Gate controller Wi-Fi Smart Switch (Mini-D) is a Matter-compatible device, allowing seamless integration with Alexa, Apple Home, Google Home, and Home Assistant for a unified smart home experience.

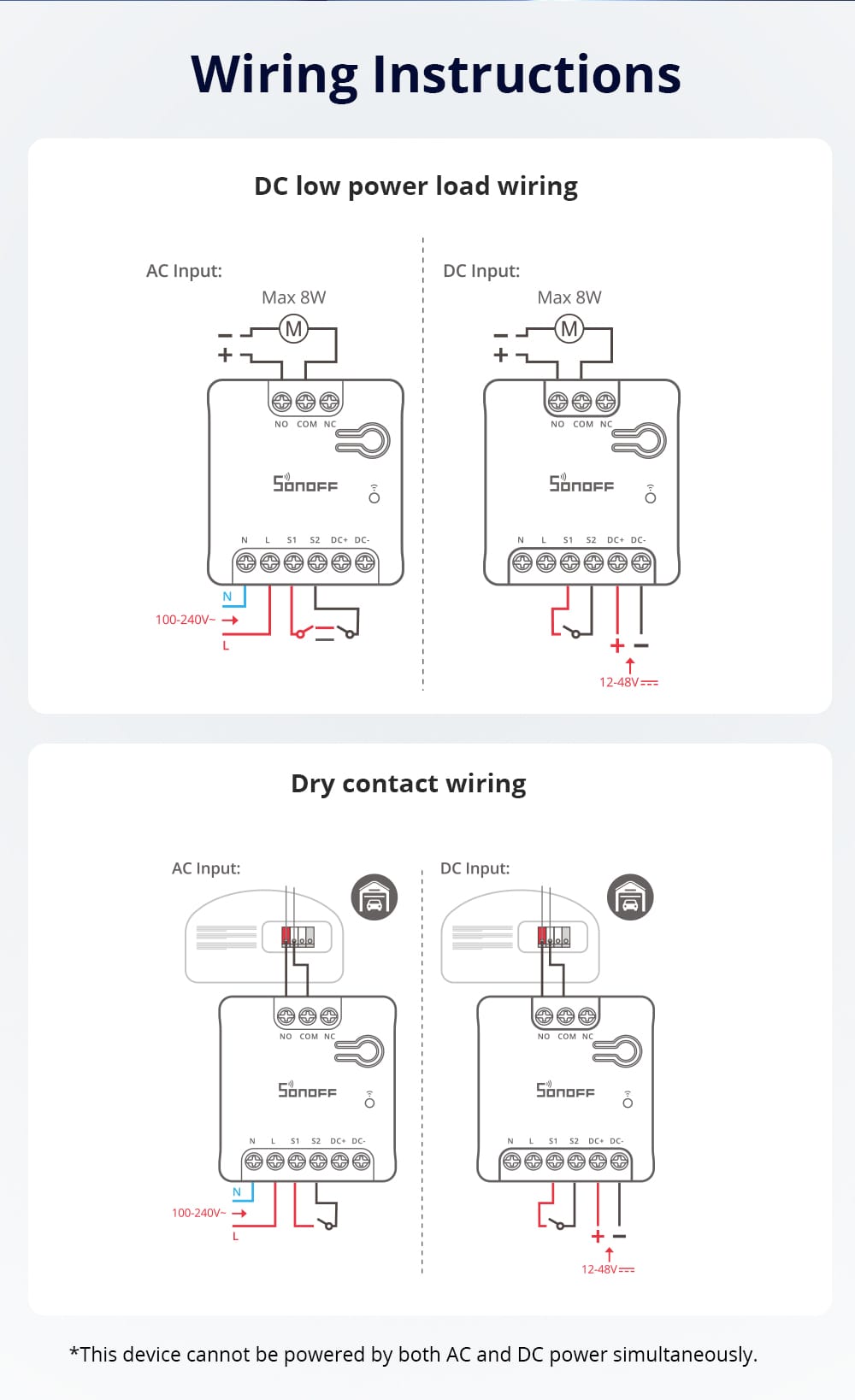

Designed for flexible power compatibility, the Mini-D supports both AC and DC power sources, making installation easy in various environments. It features dry contact support, perfect for controlling garage doors, gates, and motors. Additionally, it can safely control high-power systems when used with a contactor.

With a DC low-power motor load capacity of up to 8W (Trigger Port) , this smart switch is ideal for managing DC solenoid valves, motors, and similar low-power systems. Its compact and lightweight design ensures easy installation, making it a perfect addition to any smart home or industrial setup. (The Sonoff Mini D is the same as the Sonoff Gate Switch)

The Sonoff Mini D has to be set up in the following modes for Gate and Garage Doors: Switch Mode- Must Be in Pulse Mode. Inching Setting must be enabled at 0.5 Seconds and Auto Off.

ICASA Approved

ICASA Certificate: TA-2025/02xx

**Please Note: *AC and DC are not supported as power inputs at the same time.**

**Please Note: A certified installer must install the switch otherwise warranty is void.**

**Please Note: The Sonoff Mini D does not have any External Sensors providing a open or closed status**

Features

• Matter Compatible – Works with Alexa, Apple Home, Google Home, and Home Assistant for unified smart home control.
• AC/DC Power Support – Compatible with 100-240V AC and 12-48V DC, offering flexible installation.
• Dry Contact Support – Ideal for controlling garage doors, gates, motors, and other dry contact devices.
• DC Low-Power Motor Load – Supports DC motors/solenoid valves up to 8W, making it ideal for automation.
• Contactor Control – Enhances safety and efficiency by managing high-power systems through a contactor.
• Wi-Fi Connectivity – 2.4GHz Wi-Fi ensures stable wireless communication for remote control.
• Compact & Lightweight Design – Easy installation in various environments with a 34.5g weight.

Specifications

• Model: MINI-D
• Wireless Connection: IEEE 802.11 b/g/n 2.4GHz
• Max.Load: 24V⎓2A Max Resistive load OR 12/24V⎓8W Motor Load
• Rating: 100-240V~50/60Hz 0.1A Max OR 12-48V⎓1A Max μ
• Color: White
• Casing Material: PC
• Net Weight: 34.5g
