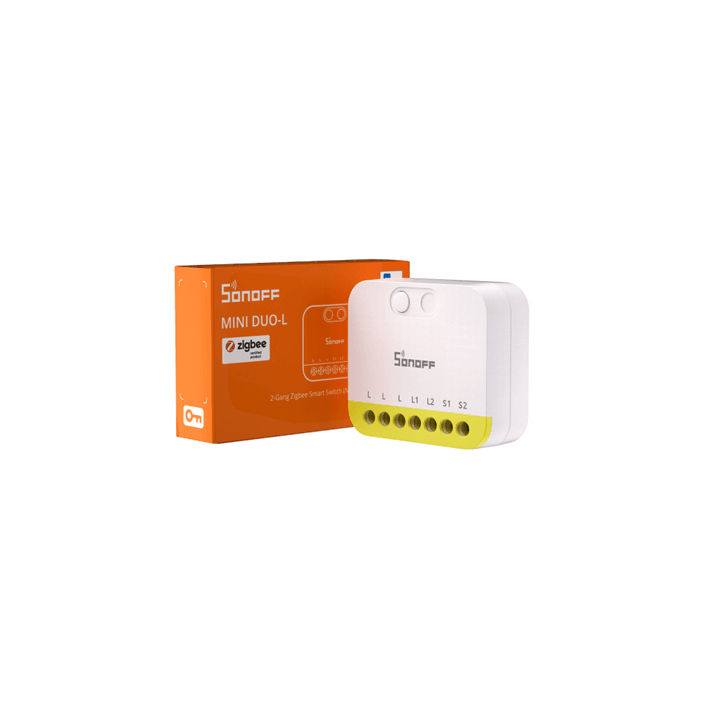

The Sonoff Mini Duo No Neutral (Zigbee) has Dual Control for efficiency. The “Duo” capability allows you to control two distinct electrical circuits (2 Live Outputs) from a single unit. Despite this dual functionality, it retains the ultra-compact “Extreme” form factor, making it small.
Retain Physical Control Don’t lose your traditional wall switches. The S1/S2 ports allow you to wire your existing 2-lever rocker switches directly to the unit, giving you the best of both worlds: smart app control and familiar physical switching.
Key Features:
Zigbee 3.0 Protocol: Fast, reliable, and low-latency local control.
2-Channel Output: Control two separate electrical circuits independently.
Hub Compatible: Works with Sonoff ZBBridge, SmartThings, and Amazon Echo (Zigbee).
Extreme Size: Ultra-small body fits inside standard 2×4 or 4×4 wall boxes.
Product Specifications
Product Type: Zigbee Smart Switch
Model: Sonoff Zigbee Mini Duo No Neutral (Extreme Series)
Protocol: Zigbee 3.0 (IEEE 802.15.4)
Input Voltage: 100-240V AC 50/60Hz
Output: 2-Channel / 2-Gang
Max Load: 16A Total (10A Max per Gang) – Subject to final rating on unit
