Sonoff Gate Switch

Description

Sonoff Gate Switch

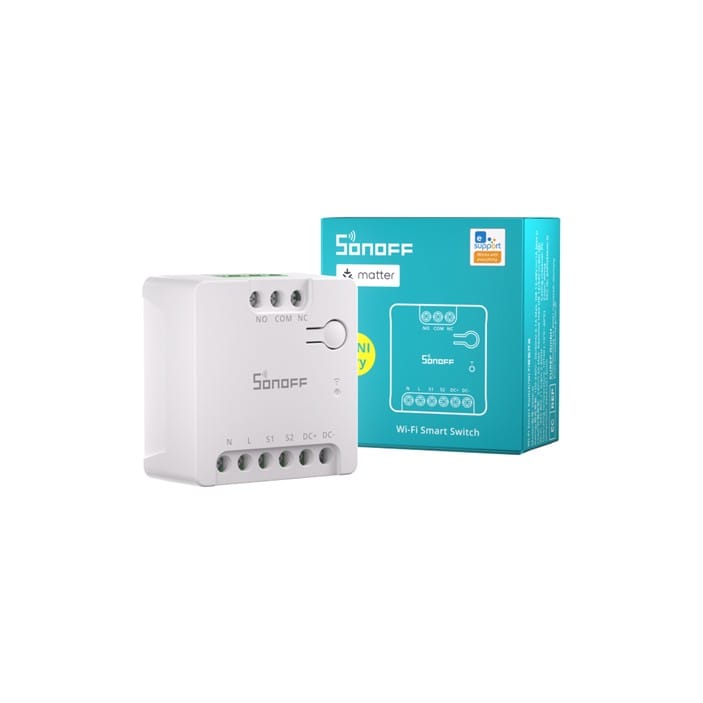

Sonoff Gate controller Wi-Fi Smart Switch (Mini-D) is a Matter-compatible device, allowing seamless integration with Alexa, Apple Home, Google Home, and Home Assistant for a unified smart home experience.

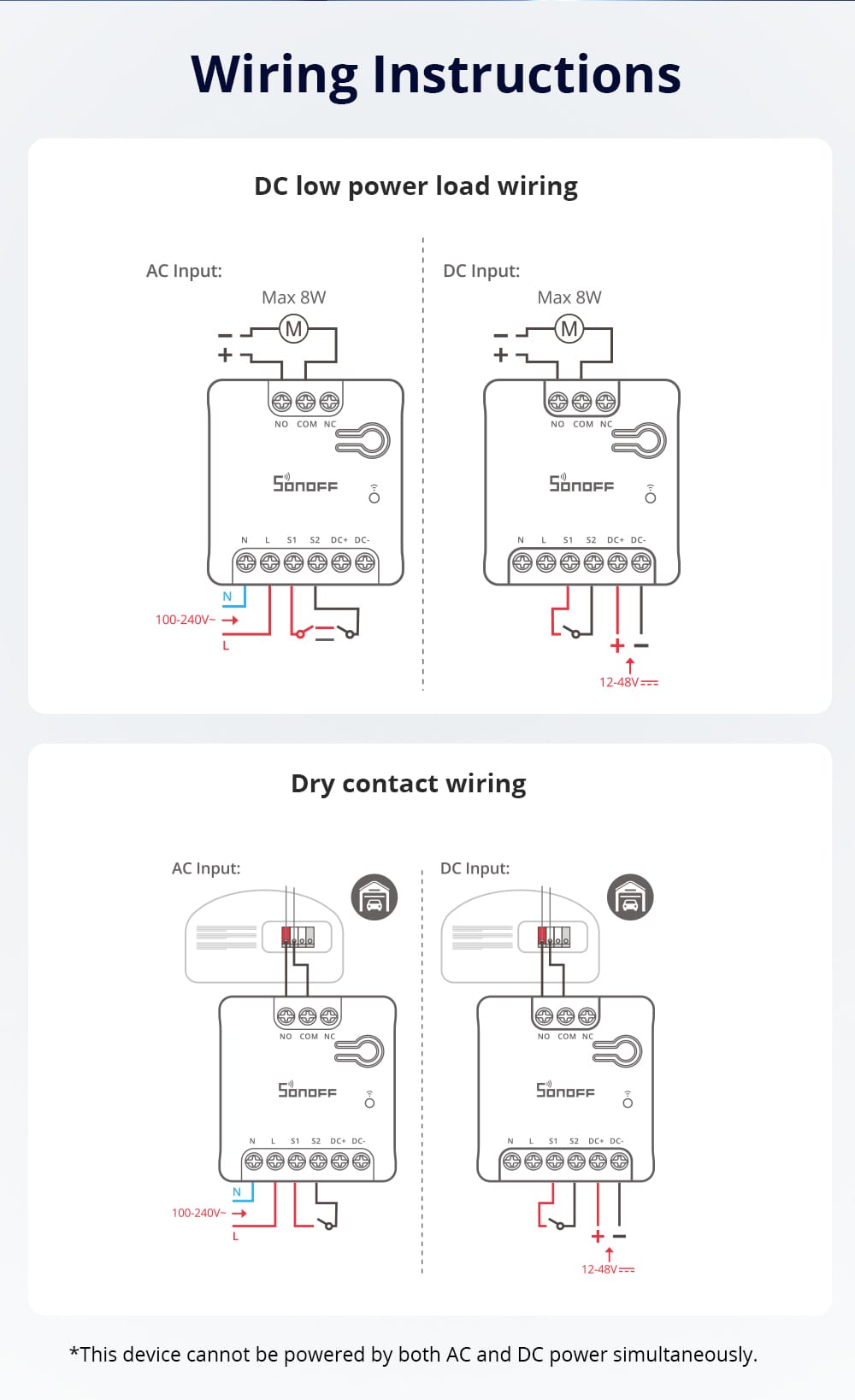

Designed for flexible power compatibility, the Mini-D supports both AC and DC power sources, making installation easy in various environments. It features dry contact support, perfect for controlling gates, and motors. Additionally, it can safely control high-power systems when used with a contactor.

With a DC low-power motor load capacity of up to 8W, this smart switch is ideal for managing DC solenoid valves, motors, and similar low-power systems. Its compact and lightweight design ensures easy installation, making it a perfect addition to any smart home or industrial setup. (The Sonoff Mini D is the same as the Sonoff Gate Switch)

The Sonoff Mini D has to be set up in the following modes for Gate and Garage Doors: Switch Mode- Must Be in Pulse Mode. Inching Setting must be enabled at 0.5 Seconds and Auto Off.

**Please Note: *AC and DC are not supported as power inputs at the same time.**

**Please Note: A certified installer must install the switch otherwise warranty is void.**

**Please Note: Application for NRCS is currently under approval**

**Please Note: The Sonoff Mini D does not have any External Sensors providing a open or closed status**

ICASA Approved

User Manual
